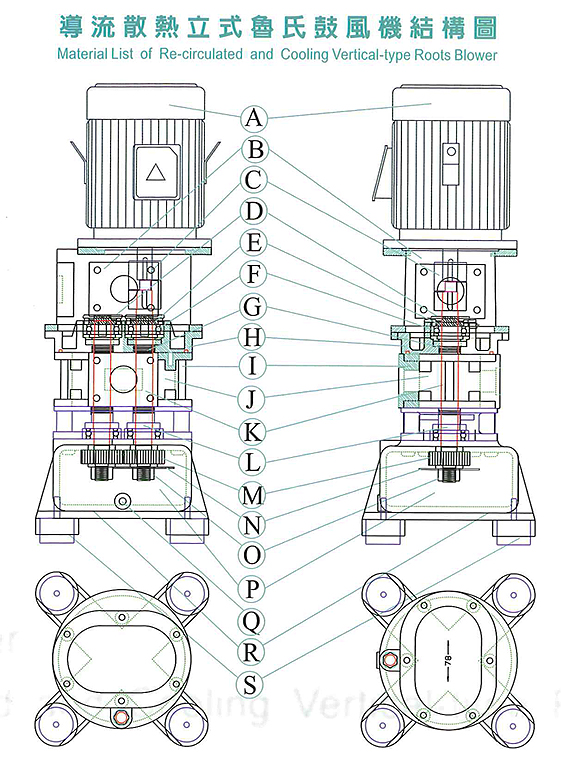

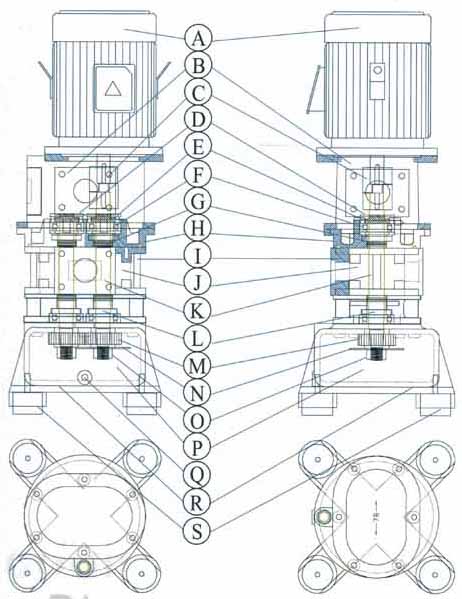

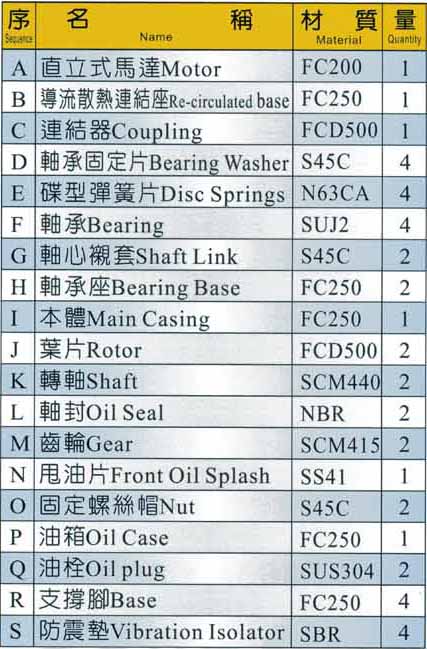

| NO. | NAME | MATERIAL | QUANTITY |
| A | Motor | FC200 | 1 |
| B | Re-Circulated Base | FC250 | 1 |
| C | Coupling | FCD500 | 1 |
| D | Bearing Washer | S45C | 4 |
| E | Disc Spring | N63CA | 4 |
| F | Bearing | SUJ2 | 4 |
| G | Shaft Link | S45C | 2 |
| H | Bearing Base | FC250 | 2 |
| I | Main Casing | FC250 | 1 |
| J | Rotor | FCD500 | 2 |
| K | Shaft | SCM440 | 2 |
| L | Oil Seal | NBR | 2 |
| M | Gear | SCM415 | 2 |
| N | Front Oil Splash | SS41 | 1 |
| O | Nut | S45C | 2 |
| P | Oil Case | FC250 | 1 |
| Q | Oil Plug | SUS304 | 2 |
| R | Base | FC250 | 4 |
| S | Vibration Isolator | SBR | 4 |
