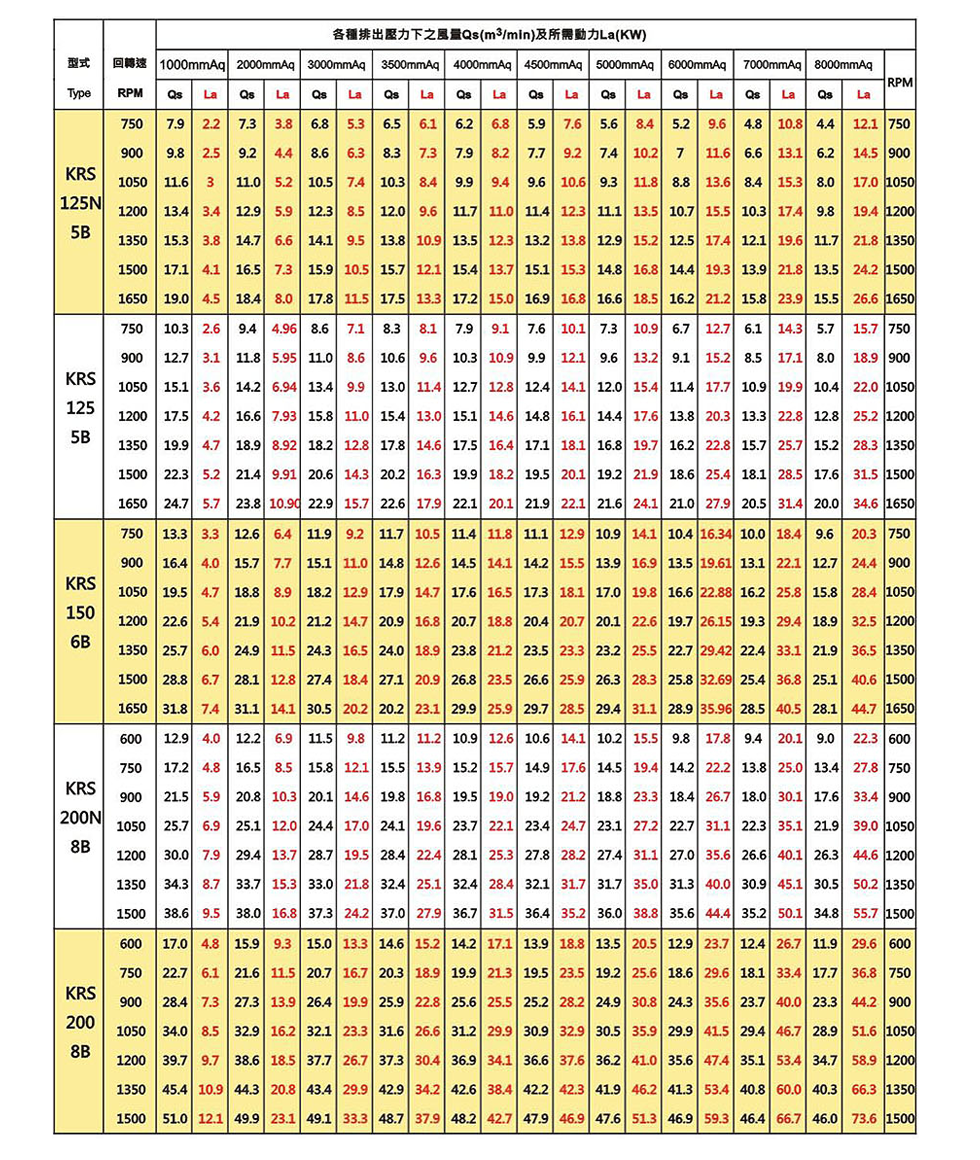

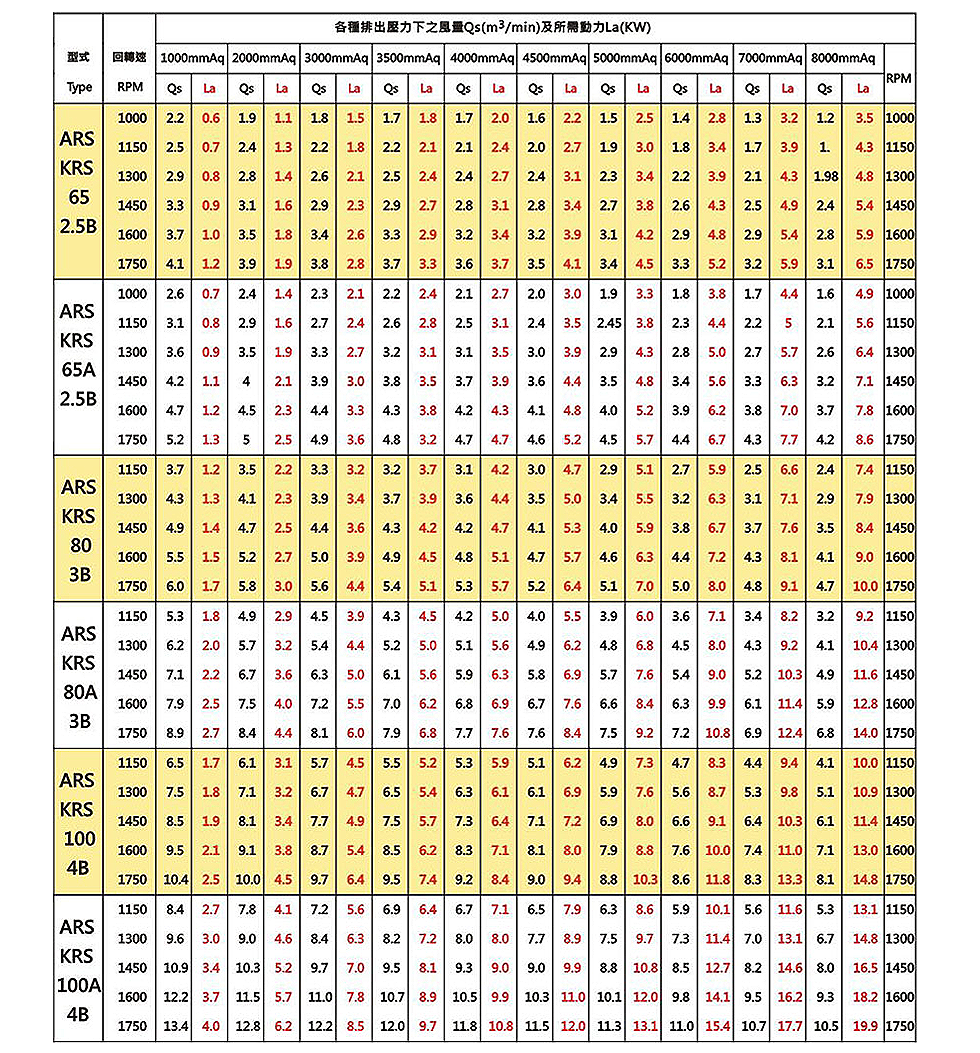

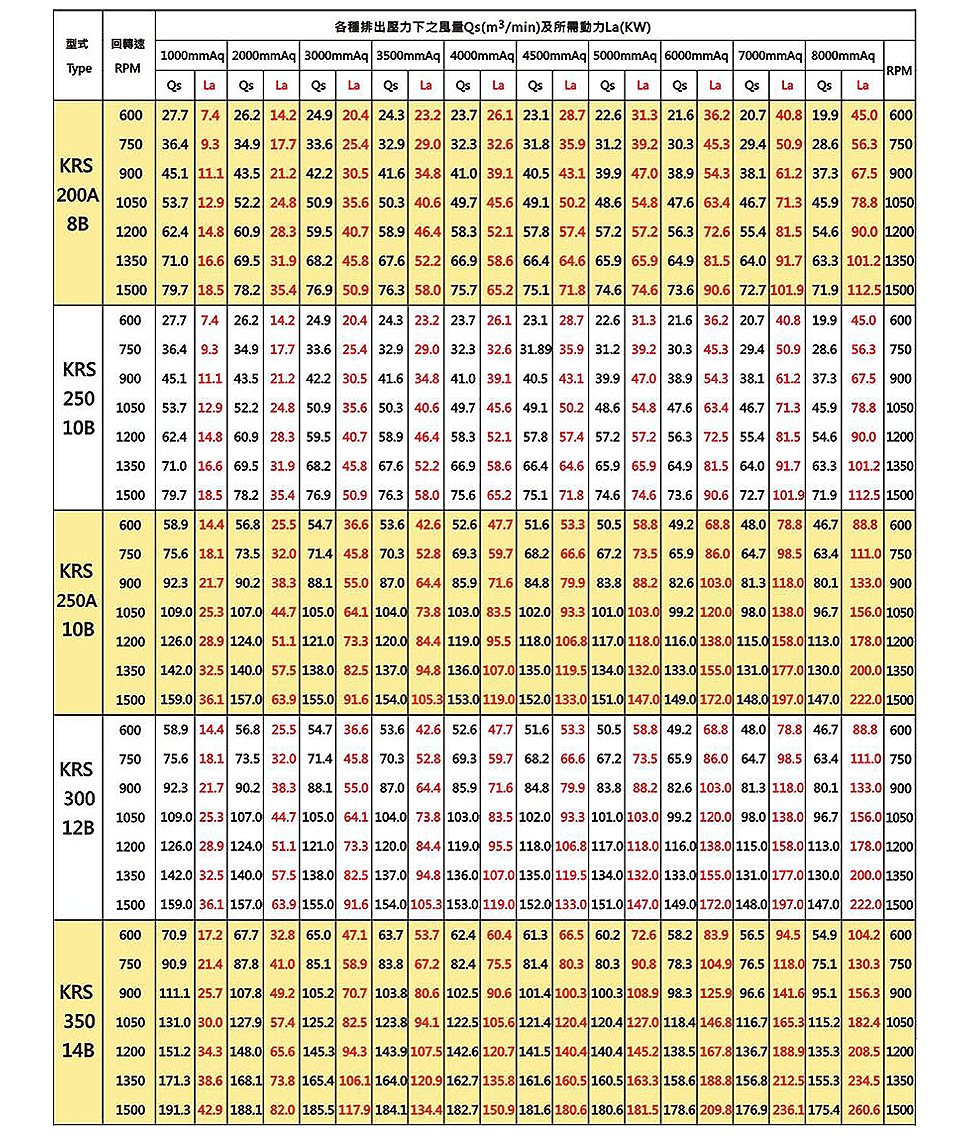

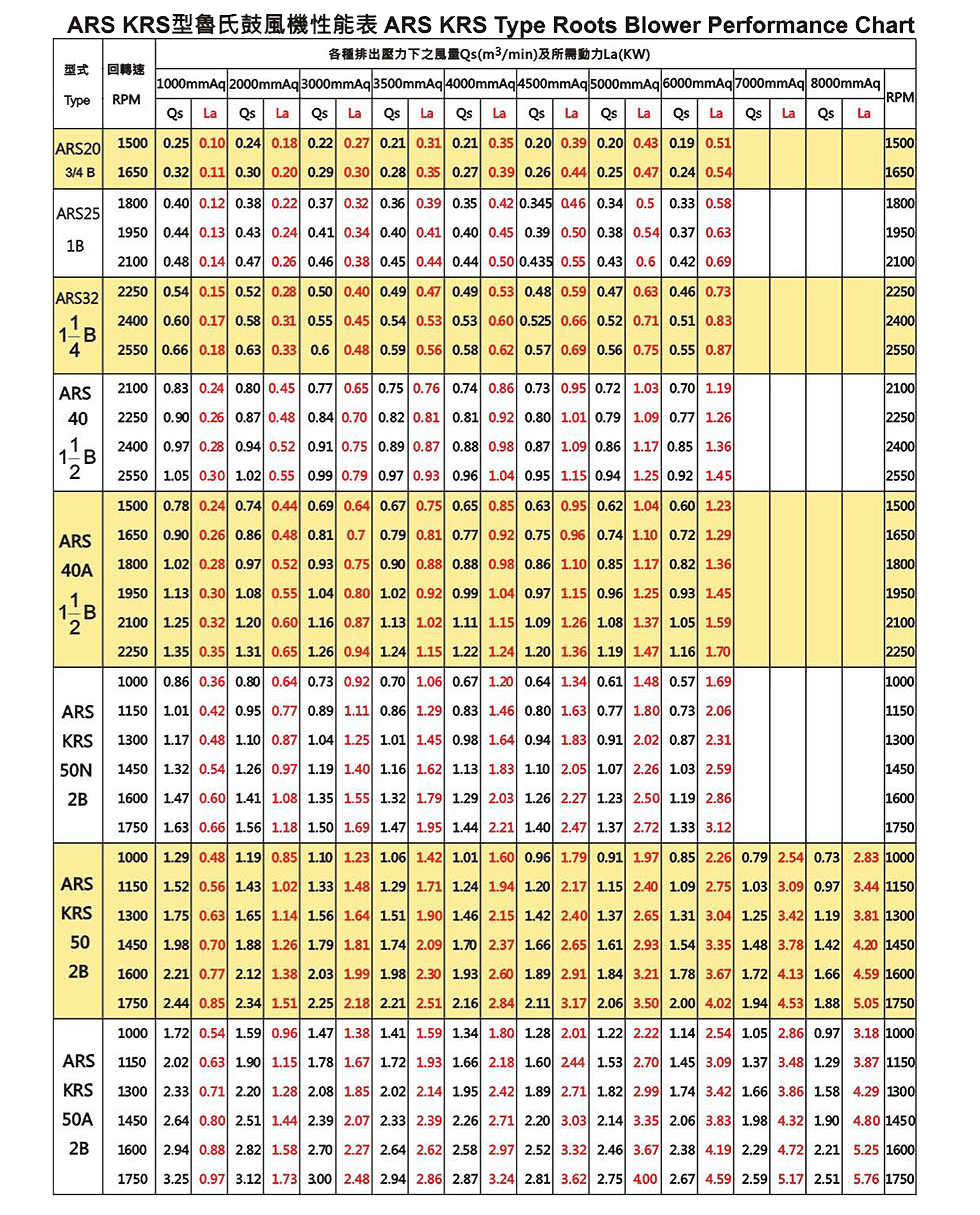

PERFORMANCE CHART |
PERFORMANCE CURVE | MATERIAL LIST | OUTLET DIMENSION |
Note: ARS - single oil case ; KRS - twin oil case |
| Qs: CMM or m3/min |
| La: to transform to Hp → La / 0.75 |
| Rotor: Twin lobe or Tri lobe |
| Horse power: 0.25Hp, 0.5Hp, 1Hp, 2Hp, 3Hp, 5Hp, 7.5Hp, 10Hp, 15Hp, 25Hp, 30Hp,
40Hp, 50Hp, 60Hp, 75Hp, 100Hp, 125Hp, 150Hp, 175Hp, 200Hp, ets. |
