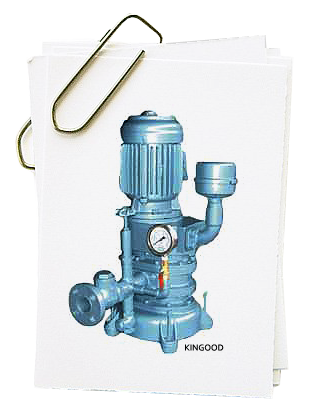

Mini(Quiet) type of Re-Circulated and cooling vertical type roots blower
Bore Size : 1" to 1.5 " (32~40A)	Low Noise
Air Capacity: 0.33 ~ 1 (m^3/min) 330~1000(liter/ min)	Lighter weight & Mini size
Maxi Pressure : 6000mmAq (0.6 kgf/cm^2)(58.8kPa)	Tiny Vibration & Long Durability
Noise : 45~54 db	Protective Device For Reverse Rotation Device
Motor Power:0.5~2Hp(0.375~1.5Kw)	Self Adjustment of Air Flow (optional accessory)

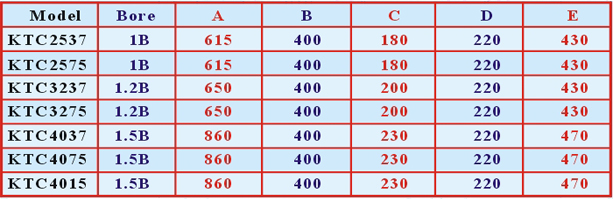

size:mm

60HZ PERFORMANCE CHART OF KTC SERIES
Pressure			1000mmaq		2000mmaq		3000mmaq		4000mmaq		5000mmaq		6000mmaq		Noise	Weight
Model	Bore	Motor	CMM	KW	CMM	KW	CMM	KW	CMM	KW	CMM	KW	CMM	KW	db	Kg
KTC3237	1¼B	0.5Hp	0.5	0.29	0.45	0.33									45	51
KTC3275	1¼B	1Hp	0.5	0.29	0.45	0.33	0.41	0.39	0.38	0.45	0.34	0.51	0.3	0.58	47	55
KTC4037	1½B	0.5Hp	0.82	0.36											46	59
KTC4075	1½B	1Hp	0.84	0.36	0.75	0.45	0.68	0.65	0.62	0.73					48	63
KTC4015	1½B	2Hp	0.84	0.48	0.75	0.45	0.68	0.65	0.62	0.73	0.58	0.85	0.5	0.95	49	71
KTC40A15	1½B	2Hp	0.92	0.69	0.83	0.75	0.76	0.88	0.72	1.02	0.68	1.17	0.6	1.35	54	75

50HZ PERFORMANCE CHART OF KTC SERIES
Pressure			1000mmaq		2000mmaq		3000mmaq		4000mmaq		5000mmaq		6000mmaq		Noise	Weight
Model	Bore	Motor	CMM	KW	CMM	KW	CMM	KW	CMM	KW	CMM	KW	CMM	KW	db	Kg
KTC2537	1B	0.5Hp	0.33	0.15	0.29	0.19	0.25	0.21	0.21	0.25	0.2	0.3	0.16	0.35	51	51
KTC2575	1B	1Hp	0.33	0.24	0.29	0.26	0.25	0.31	0.21	0.35	0.2	0.39	0.16	0.46	52	55
KTC3237	1¼B	0.5Hp	0.6	0.21	0.56	0.26	0.53	0.35							52	59
KTC3275	1¼B	1Hp	0.6	0.26	0.56	0.35	0.53	0.45	0.5	0.55	0.46	0.71	0.43	0.86	54	63
KTC3215	1½B	2Hp	0.6	0.62	0.56	0.66	0.53	0.73	0.5	0.79	0.46	0.88	0.43	0.95	56	71
KTC4037	1½B	0.5Hp	1	0.24	0.83	0.34									56	67
KTC4075	1½B	1Hp	1	0.32	0.83	0.45	0.78	0.63	0.73	0.75					58	71
KTC4015	1½B	2Hp	1	0.65	0.83	0.73	0.78	0.84	0.73	0.97	0.69	1.13	0.64	1.32	61	75
