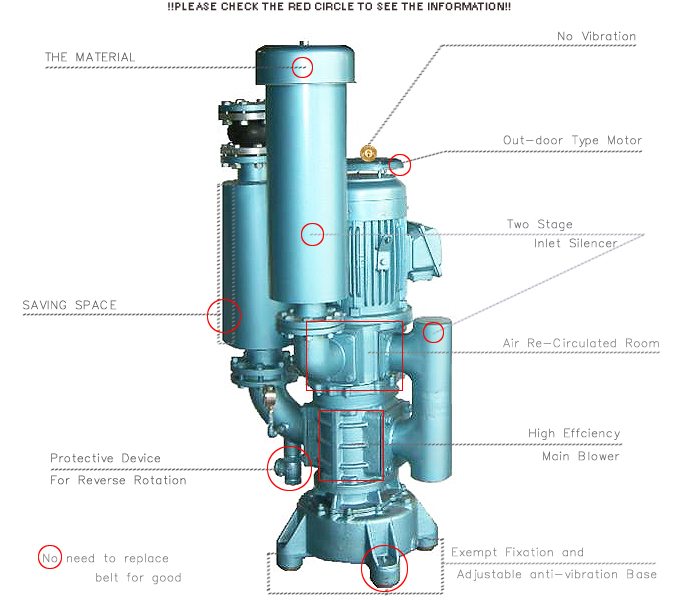

Feature of Re-circulated and Cooling Vertical-type Roots Blower
 Low Noise The inlet adopts The design of teo-stage muffing, added by the buffering acooustic encloures. The erect outlet muffleris additionally installed on the outlet, so that the recurrent noise from air compression can be effectively reduced. |
 |
| High Efficiency The lobe wheel uses the two-lobe round and symmetrical dessign, while, undergoing the precise processing by the planing machine exculusively for CNC, can minimize the space between the lobe wheels so as to enhance the efficiency of the blower. |
|
| Small Vibration &Long Durability The blower is of theerect axle vertical design.Its lobe wheels are cablibrated by extremely precise dynamic balancing with the fixed bearing design of the special diskshape spring lamination, which leads to less than 15u m egine vibration.(When the blower operates with full load , it can hold 50$ coin so standing that it would not fall down. |
|
| Save Space The entire structure of re-circulated cooling vertical-type Roots Blower is directly connected by the vertical design on the muffler of both the outlet and inlet, so that the space where the blower occupies can be saved. |
|
| Reverse Rotation Protection Device The blower is especially installed with one more reverse rotation protection device which can protect the blower from being damaged even when its motor happens to be rotated in reverse direction. |
|
| Self Adjustment of Air Flow By the specially tailored air flow adjuster, the operator can adjust the volume of air flow by himself at any time whenever the need for adjustment of air flow comes up. (optional accessory) |
|
|
|
| Adoption of Full Close Outdoor Motor Even if the blower is placed outdoors, you don't worry that it will suffer from weather. (for blower to be installed in outdoor) |
|
| Permanent Exemption of Belt Replacement The blower and the motor adopt the axle connector for direct driving , which can save the expenses of the blet replacement and prevent from the environment pollution caused by the belt powder. |
|
| Exemption from Fixation The special anti-vibration device can stabilize the machine's center of gravity and avoid its body from being shaky. No fixed piping is requrired and the installation is easy. |
